DNH HPS-6CT-MED

DNH HPS-6CT-MED

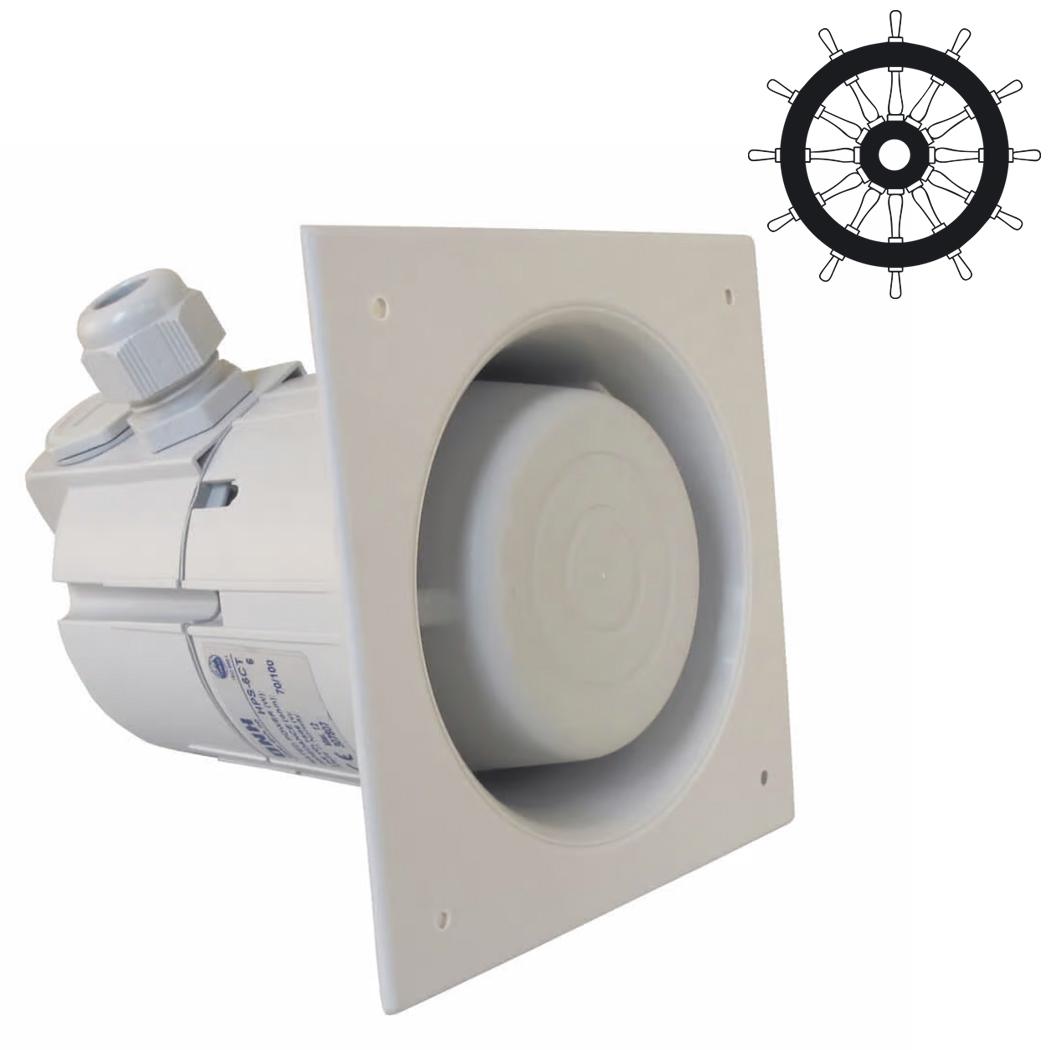

The DNH HPS-6CT-MED is a marine grade miniature weatherproof horn speaker with a square front for recessed surface mounting. Rated at 6 watts for 100 volt line public address sound systems.

Compliant with the Marine Equipment Directive 2014/90/EU standard for Safety of Life at Sea (SOLAS) Maritime applications.

The HPS6CT-MED horn is IP67 rated, constructed from Polyamide, V0 halogen free, and features a termination chamber. It's therefore ideal for use outdoors in extreme weather conditions, marine & offshore applications or any appliciation where it would be subjected to high pressure jets of water.

Light grey, RAL7035.

Warranty: 2 Years

1a: 100V IP67 MED
List Ex VAT: £145.00
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Rated Power (rms) 6W
SPL (1W/1m) 100dB
Max SPL (rated/1m) 107dB
Frequency Range (-10dB) 300HZ - 20KHZ
Dispersion (-6dB) 1kHz / 4kHz 155° / 70°
Directivity Factor, Q 1kHz/4kHz 2.0 / 5.8
Termination Spring clamp
Max. / min. amb. temp 110°C / -40°C
IP Rating IP67
Material Polyamide - V0 halogen free
Colour Grey (RAL7035)
Weight (kg) 0.6 kg
Dimensions (H x W x D) mm 121 x 121 x 132
Mounting Insertion

DOWNLOADS

DNH HPs-6CT-MED Datasheet
DNH HP6-CT-MED Compliance Certificate
