LD Systems DQOR PBW
Click to expand

LD Systems DQOR PBW

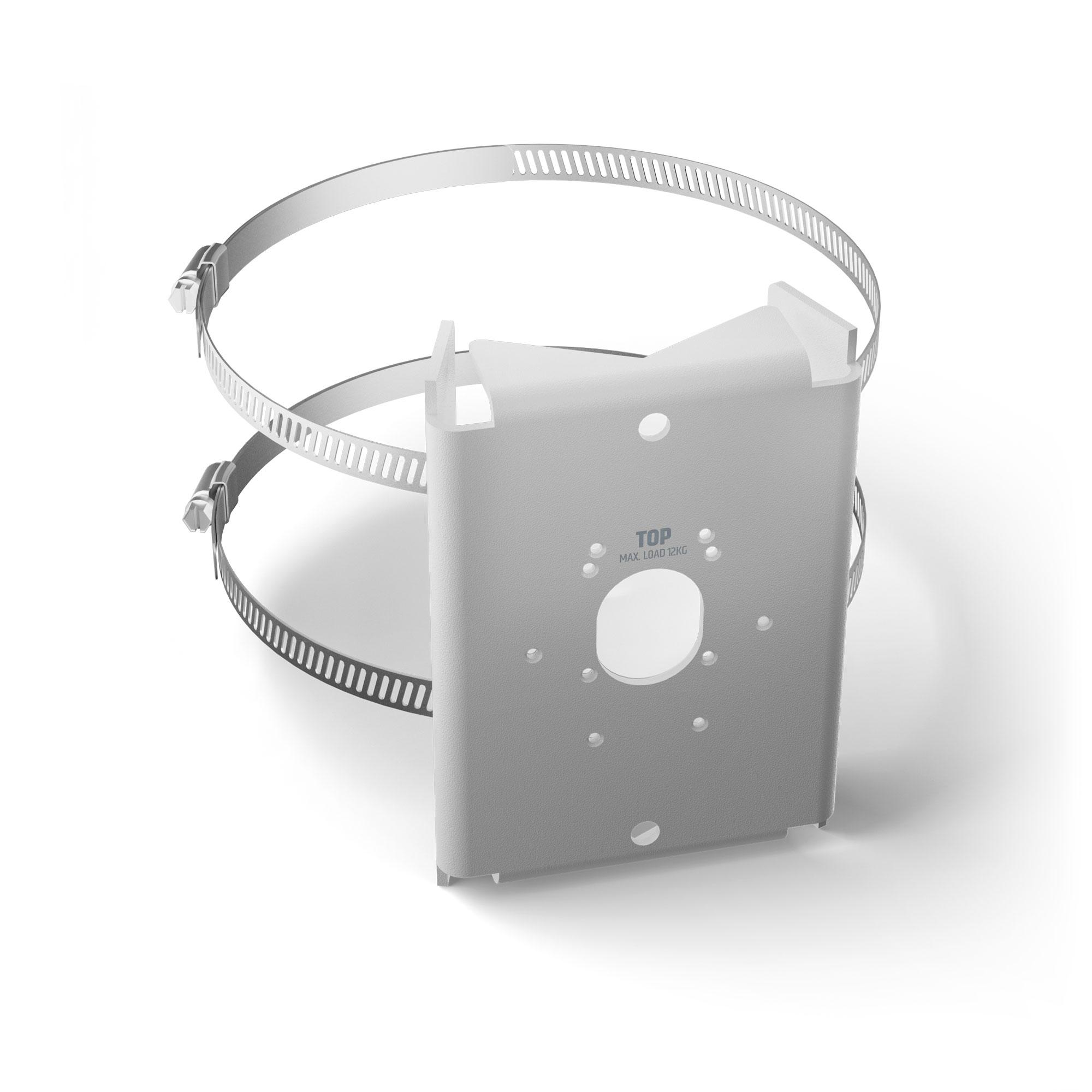

The LD Systems LDDQOR PBW white pole mount bracket is designed for mounting white DQOR speakers on poles & trusses, etc.

Also available in black - see LDDQORPB.

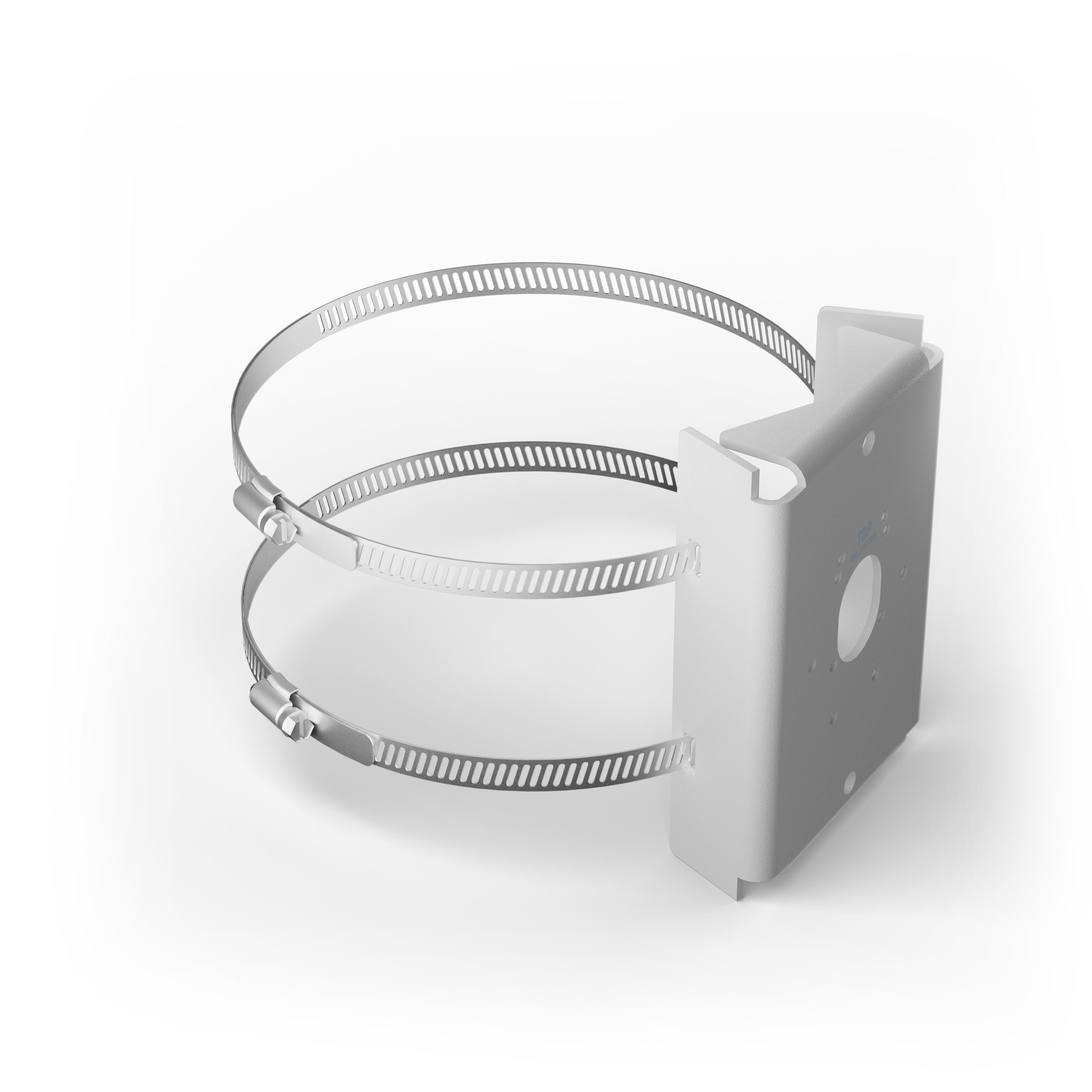

The bracket is made of stainless steel with white powder coating and is supplied with 2 stainless steel band clamps for secure mounting. Alternatively, it can be mounted with two screws (not included).

The holes in the bracket are also compatible with the Wall Mounting Brackets supplied with CURV500 WMB(W), LDSATWMB10(W/B) and SUWMB10(W/B).

  • Includes 2 stainless steel band clamps with diameters up to 290 mm

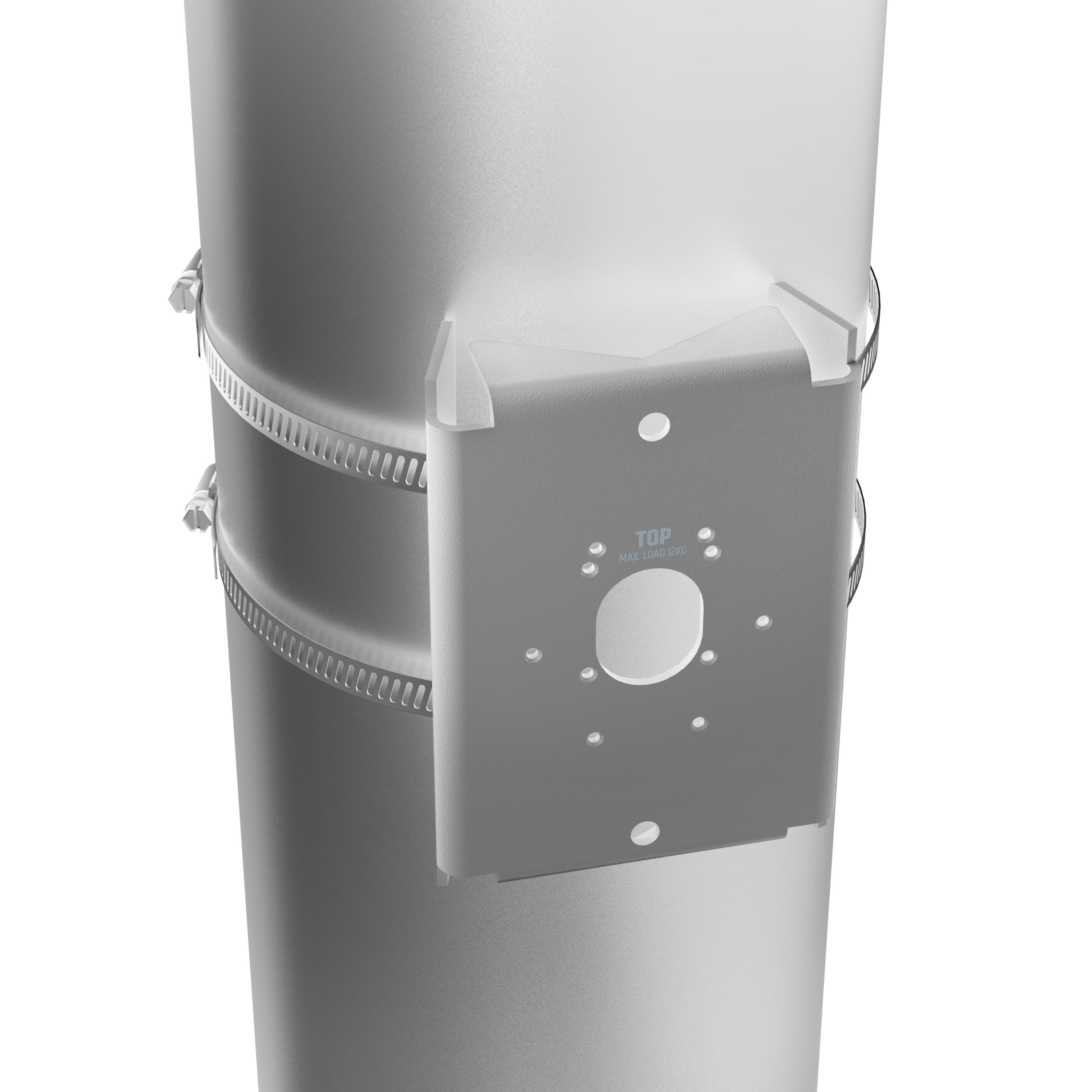

  • Suitable for mounting on cylindrical objects with a circumference of 35 to 290 mm

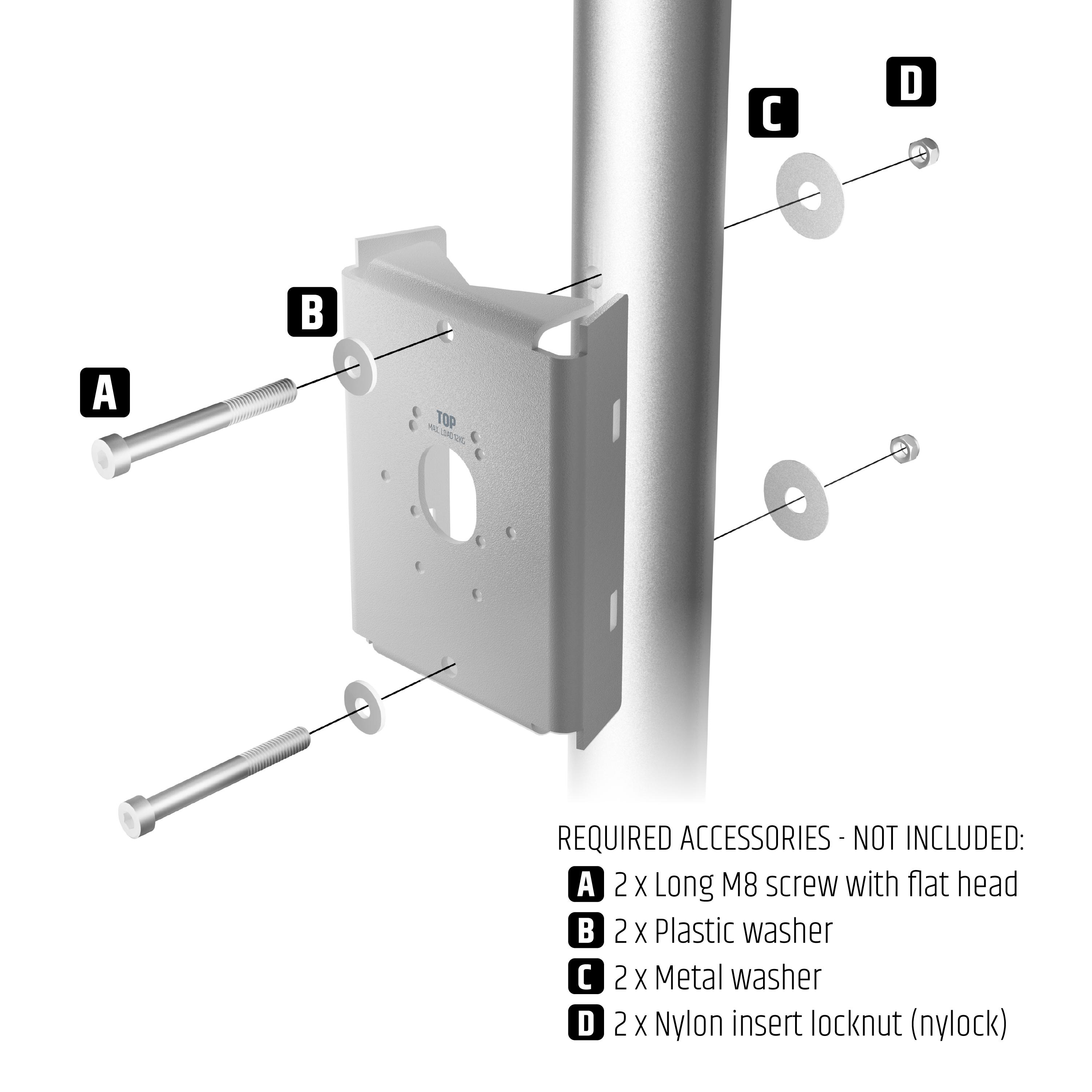

  • Mounting option with screws for small diameter poles
  • Compatible with DQOR wall mount, CURV500 WMB, SAT WM10B & SUWMB10(W/B)
  • Warranty: 5 Years
List Ex VAT: Contact Us
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Product type

Speaker Polemount

Material

stainless steel

Color

Black

Surface

Black matt Powder coated

Max. load

20 kg

Width

116.9 mm

Height

165 mm

Depth

43.2 mm

Tube diameter

35 mm - 290 mm

Weight

0,9 kg
