RCF RC KPS B
Click to expand

RCF RC KPS B

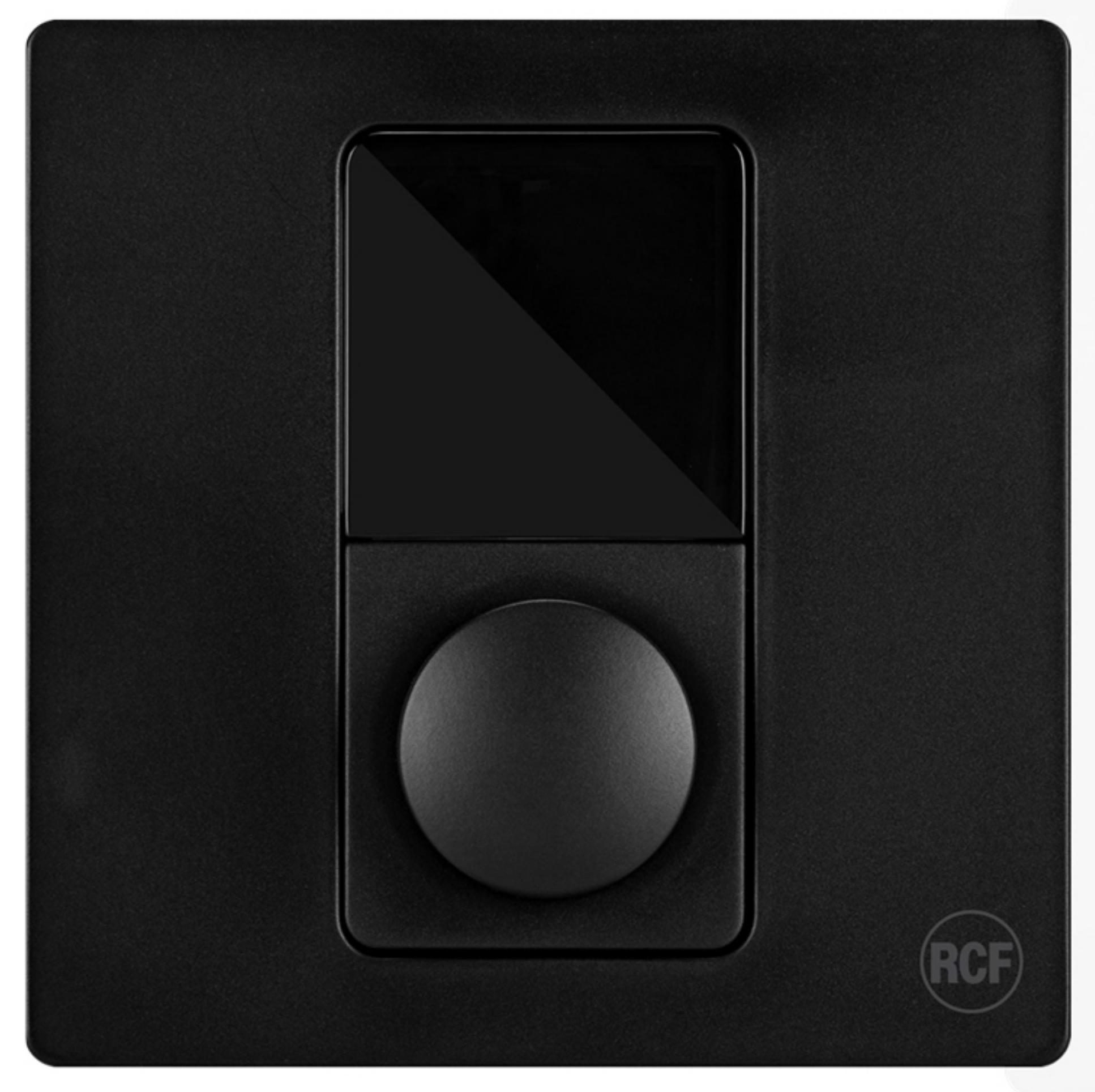

The RCF RC KPS B is a wall-mounted remote control unit for use with RCF KPS series amplifiers and enables adjustment of zone volumes and source selection.

Featuring a discreet and elegant design, the RC KPS B has a smart black finish but is alternatively available in white to suit the installation environment.

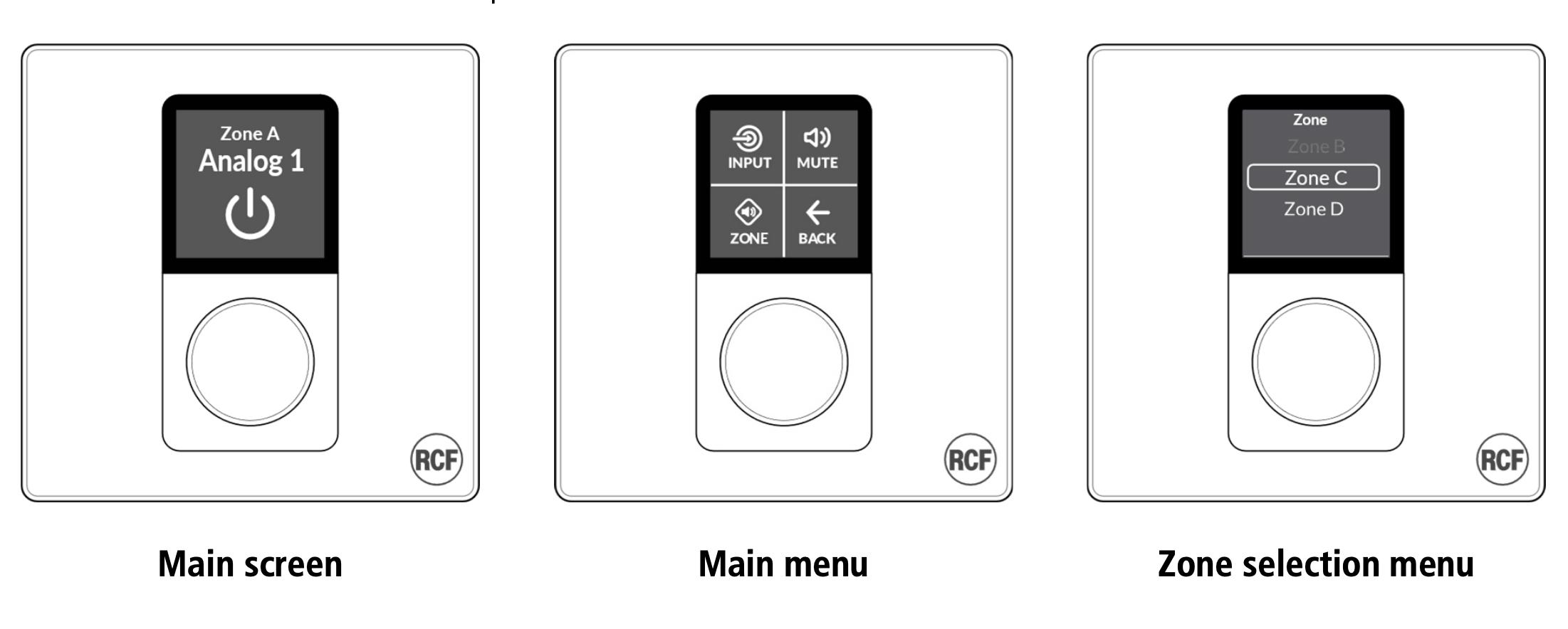

The user interface consists of a practical rotary knob and a 1.1” colour display with a resolution of 240x240 pixels. The colour scheme can be changed to match the installation setting.

Configuration is very simple and intuitive and is carried out via the RDSpace software.

Up to 8 control units can be connected to the same amplifier, while power is supplied via PoE.

  • Multi-zone remote control
  • Compatible with all KPS series amplifiers
  • Colour display (240x240 px)
  • PoE power supply
  • Volume control
  • Source selection
  • Standby management
  • Available in white RAL 9003 and black RAL 9005
List Ex VAT: £220.00
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Functions

Volume control, Mute, Source selection, Stand-by

Installation

Compatible with EU installation standard

Works with

KPS series amplifiers

Number of connectable items

Up to 8 controllers for each amplifier

Connector

RJ45

Max cable length (CAT 5e)

100 m

Power supply

PoE Class I device, 48V

Power consumption

3.84Wmax

IP protection grade

IP 30

Cabinet/Case Material

Plastic

Colour

Black - RAL 9005 or White - RAL 9003

Dimensions H x W x D

86.8 mm / 3.42 inches x 86.8 mm / 3.42 inches x 42.8 mm / 1.69 inches

Recessed Depth

23.7 mm / 0.93 inches

Weight

0.12 kg / 0.26 lbs
